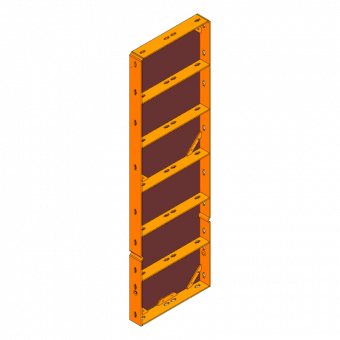

Modular formwork panel 150 cm

The 150 cm formwork panel is the largest panel in the modular formwork system. It can be used both for manual formwork (without the need for a crane) for small surfaces and for large areas with several connected formwork panels.

  • Available in a variety of widths
  • Steel grid frame made of robust, high-quality flat steel
  • 15-mm-thick, coated birch plywood
  • Maximum fresh concrete pressure of 35 kN/m²
  • Can be used as manual formwork
  • Keybolts as universal connecting pieces for all panels and accessories
  • Compatible with all PASCHAL systems

Modular / GE universal formwork

Modular formwork from PASCHAL is the tried and tested universal formwork for systematic shuttering based on the modular principle. It has demonstrated its versatility, adaptability and flexibility on a very wide range of construction sites around the world - for foundations, walls, shafts, curvatures, columns or beams.

Do you need further information?

If you have any questions or require further, more detailed information, please contact our experts by phone or e-mail.

E-Mail kundenservice@paschal.com
Phone
+49 (0) 78 32 / 71-0



Panel width: 40 cm
Panel height: 150 cm
Frame depth: 7,5 cm
Weight: 23,8 kg
Plywood: 15 mm thick, 11-ply birch plywood
Max. concrete pressure: 35 kN/m² according DIN 18218
Tolerances of deflection: According DIN 18202, table 3, line 6
No review available for this item.

310,00 € 100 piece | 3,10 €/piece
