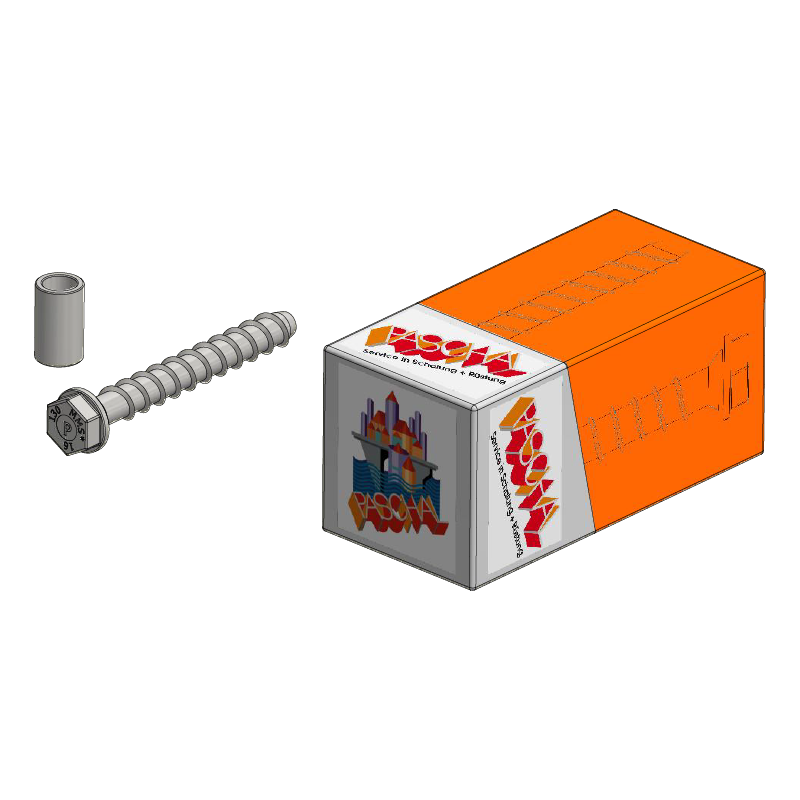

Concrete screw 16x130 10 pcs (incl. test sleeve)

Product number: N935.000.0016
Weight: 2.2 kg

Concrete screw 16 x 130 10 pcs. (incl. test sleeve)

Thanks to the optimised concrete thread and an extremely adaptable cone under the head, the concrete screw 16 x 130 is ideally suited for the temporary fixing of construction site equipment in concrete and formwork construction.

  • Hexagonal head with pressed-on washer and cone
  • Blue galvanised
  • Diameter: 16 mm
  • Length: 130 mm
  • For temporary fastening of construction site equipment such as slab props, push-pull props, fall protection, scaffolding
  • Dismountable and reusable when using the enclosed test sleeve
  • Approved for use in young concrete
  • Hole diameter of 17-23 mm in the base plate can be closed with one bolt
  • Ideal core/thread geometry makes it easy to screw in and has high admissible capacities
  • Toothed functional tip reduces wear
  • Approved and monitored product
  • Packaging unit: 10 pieces

Application information

The innovative screw anchor is very easy to install and reduces the risk of errors, as it requires no dowels and is screwed directly into the pre-drilled concrete surface. The screw anchor can be set by machine — a tightening torque does not need to be defined. The concrete screw can also be dismantled at any time and reused several times. The test sleeve enables easy testing of the concrete screw to ensure that it can be safely reused.

Optimised concrete thread with large surface area

Thanks to reinforced toothing on the bolt tip, the concrete screw is easy to set and it is also less susceptible to wear and tear. The higher outer diameter at the tip and the load-bearing thread ensures an optimal undercut in the concrete and thus allows higher loads.

The integrated cone under the head adapts to different hole diameters.
